What Causes Errors in a Magnetic Flow Meter?

Your mag meter was working perfectly yesterday – why is it showing erratic numbers today? Small installation oversights cause 80% of accuracy issues.

Magnetic flow meter errors stem from: 1) Improper grounding (50% of failures), 2) Partially filled pipes (air bubbles disrupt readings), 3) Electrode coating (insulating buildup blocks signals), 4) Uncalibrated zero point, 5) Strong electromagnetic interference from nearby equipment.

Top 5 Magnetic Flow Meter Failure Modes

Let’s diagnose your specific problem systematically.

How to Troubleshoot a Magnetic Flow Meter?

Before calling technicians, try these field checks first.

Troubleshoot step-by-step: check power supply (18-30V DC), verify proper grounding (<1 ohm), inspect electrode condition (clean with toothbrush if coated), confirm fully liquid-filled pipe, test with known flow rate, and check for process noise/vibration interference.

Mag Meter Diagnostic Steps

Essential diagnostic tools and methods:

Magnetic Flow Meter Troubleshooting Kit

Tool	Purpose	Critical Specs
Multimeter	Ground resistance measurement	0.1Ω resolution
Endoscope	Internal electrode inspection	5mm diameter, LED light
Process calibrator	4-20mA loop verification	0.05% accuracy
Ultrasonic flowmeter	Cross-verification	Clamp-on type
pH test strips	Chemical attack detection	0-14 range

How to Reset Electromagnetic Flow Meter?

Resetting should be your last recourse – understand the consequences.

Factory resets erase all calibration data – only perform when: 1) Replacing electronics, 2) Corrupted software, 3) Major configuration errors. Always document existing settings (K-factor, pipe size, liner material) before resetting. For Endress+Hauser devices¹, hold ▲+▼ during startup for 10 seconds.

Settings Loss Warning

Manufacturer-specific reset procedures:

Reset Methods for Common Mag Meters

Manufacturer	Soft Reset	Factory Reset
Siemens MAG 6000	Mode+Exit buttons 5 sec	Service password required
Krohne Waterflux	Quick power cycle	Ground terminal jumper
ABB FSM4000	▲▼◄► simultaneous press	Config card reload
Yokogawa AXFA11	Front panel combo	Dedicated reset tool

What Are the Sources of Error in a Flow Meter?

Not all inaccuracies originate from the meter itself.

Four error categories: 1) Installation (bent pipes, wrong orientation), 2) Process (bubbles, pulsations), 3) Environmental (temperature swings, lightning strikes), 4) Instrumentation (aging electrodes, power surges). Installation errors account for 60% of field issues – particularly insufficient straight pipe runs.

Accuracy Impact Factors

Quantified error contributors:

Typical Mag Meter Error Budget

Error Source	Impact Range	Mitigation Strategy
Flow profile	±0.5% to ±5%	10D upstream straight pipe
Electrode coating	-1% per 0.1mm coat	Regular CIP cleaning
Grounding	±10% to complete fail	Separate ground rod
Temperature swing	±0.1%/°C	Built-in compensation
Power fluctuation	±1% per 5V change	Voltage regulator

Why Is My Flow Meter Not Reading Correctly?

Nine out of ten "faulty meter" cases trace back to simple, fixable issues.

Quick diagnostics: 1) Check for empty pipe (listen for flow sounds), 2) Verify grounding (measure pipe-to-meter voltage <1V), 3) Observe process changes (new pumps/valves?), 4) Inspect electrodes (remove buildup with vinegar soak), 5) Confirm proper units selection (GPM vs m³/h).

Quick Diagnosis Checklist

Common misreading scenarios:

False Reading Analysis Guide

Symptom	Most Likely Cause	Field Test
Zero drift	Grounding issue²	Measure pipe voltage
Erratic spikes	Electrode coating³	Visual inspection
Consistently low	Partially filled pipe	Ultrasonic verification⁴
No signal	Power failure	Check fuse/voltage
Reverse flow reading	Wrong wiring	Swap sensor cables

Installation Best Practices for Accurate Measurement

Prevention beats troubleshooting – get these right during installation.

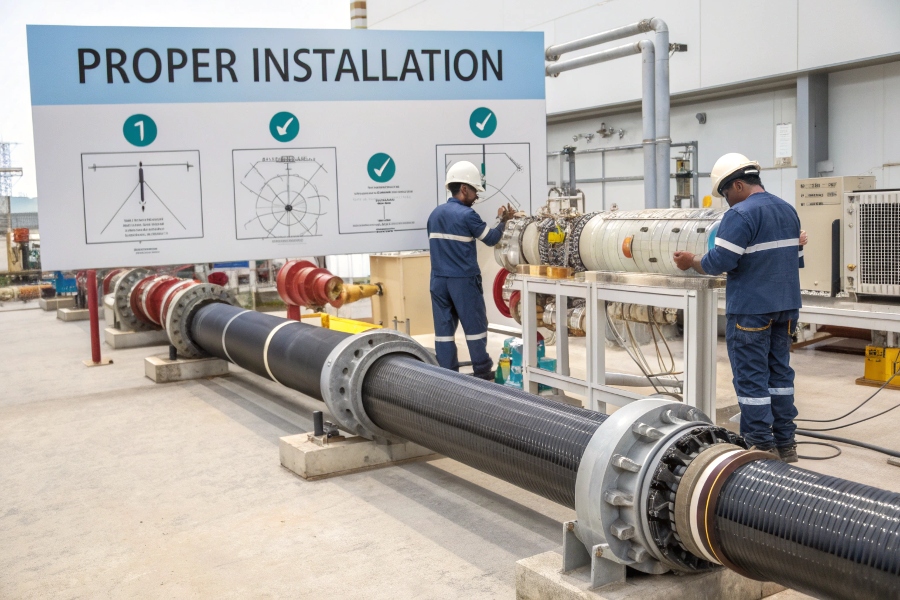

Critical installation rules: 1) Ground rings required for non-conductive pipes, 2) Upstream straight run = 10x diameter (5x downstream), 3) Avoid vertical-down flow (causes air entrapment), 4) Isolate from vibration sources, 5) Never install after pumps/elbows without adequate straight runs.

Optimal Mag Meter Positioning

Installation verification checklist:

Post-Installation Commissioning Tests

Test	Method	Acceptance Criteria
Ground verification	Resistance meter	<1 ohm to earth
Empty pipe response	Drain system completely	≤0.5% of full scale
Polarity check	Reverse flow test	Negative value shown
Noise immunity	Start nearby motor	<0.2% reading change
Process temperature	Compare with RTD reading	±2°C agreement

Conclusion

Magnetic flow meter errors primarily stem from installation oversights and maintenance neglect – proper grounding alone prevents half of all field issues. Regular electrode inspection and zero calibration maintain optimal accuracy between scheduled professional verifications.
