Ultrasonic Flow Meter
for small pipes
Product Description
An ultrasonic flow meter is an advanced device used to measure the flow rate of liquids through pipes. It employs ultrasound technology to ascertain the velocity of a fluid, which is then used to calculate the flow rate. These meters are particularly useful for small pipes due to their non-intrusive nature and versatility. Ultrasonic flow meters are highly effective and versatile tools for measuring fluid flow in small pipes. Their non-invasive installation, minimal maintenance, and high accuracy make them preferable in various industries and applications where precision and reliability are essential.
Product Features
- Easily and friendly for installation and operation. It only takes a few minutes, from the start of installation to using the flow meter.

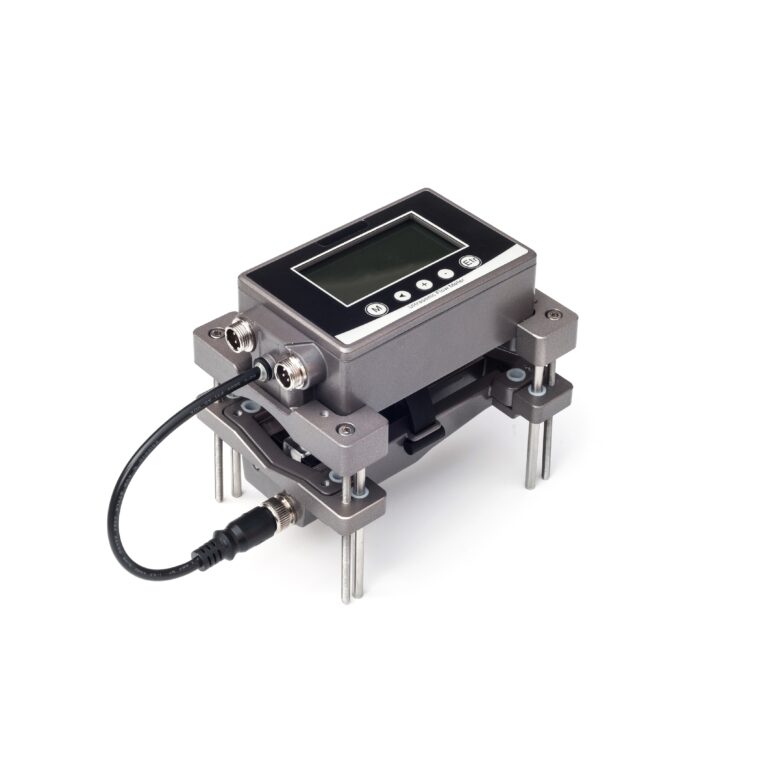

- Adopts a new external clamp design, which could get the flow rate without touch the measurement medium. Compared with other traditional flow meter, this could avoide pressure loss or media contamination problems.
- As the advantage of a clamp on flow meter, no need to cut off the pipe or long time stop the equipment, save the cost of time and labor costs.

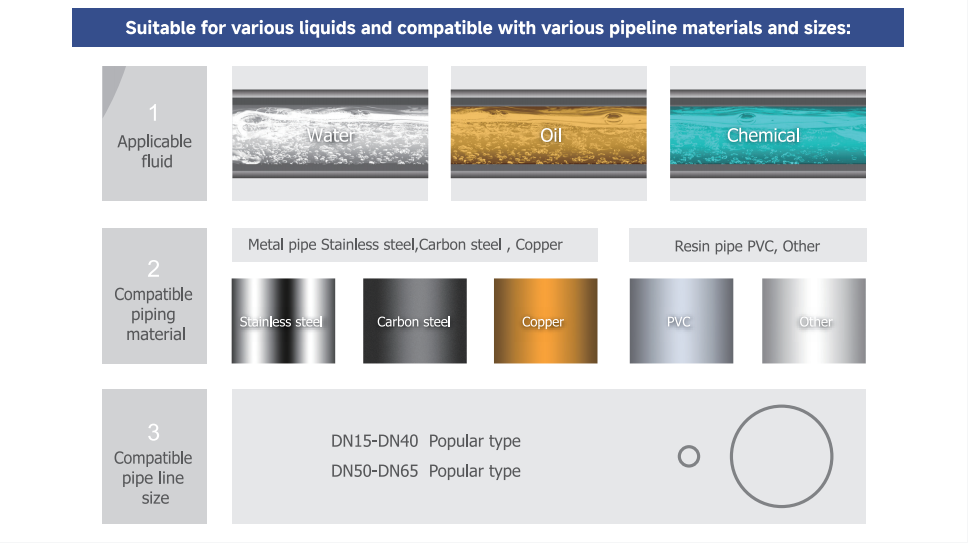

- A variety of modes are available for setting and flexibility. One set is universal for all pipe size in measuring range, and suitable for many kinds of metal and resin pipes.
- 256*128 LCD display and display a variety of information.
- It is optional to become an ultrasonic cooling(heat) meter/btu meter/energy meter to realize the monitoring and measurement of energy.
Technical Parameter
| Performance | Technical Specification |
|---|---|
| Pipe Material | Metal/PVC, PP or PVDF rigid plastic pipe |
| Liquid Type | Water/other liquid(Singleliquid medium without solid particle or impurities) |
| Temperature Range | Standard:-10~65℃; High temp: -10~115℃ |
| Low Velocity Cut Off Value (Default By Factory) |
0.1m/s |
| Display | 256*128 LCD |
| Response Time | 0.5~60s |
| Accuracy | +/-2%(+/-1% after calibration) |
| Data Storage Period | 300ms |
| Memory For Data Backup | EEPROM(Data storage: over 10 years,data read/write frequency: over1 million times) |
| Power And I/O Connection | M12 type aviation plug |
| Output | 4-20mA |
| Communication | Modbus RS485 |
| (Options for Output) | OCT(pulse output)/One relay alarm(please contact the factory) |
| Power Supply | 10-24V VDC |
| Electric Power | ＜3W |
| Protective Circuit | Power reverse connection protection, Power surge protection Output short circuit protection, Output surge protection |
| Enclosure Protection Class | IP65 |
| Environment Temperature | 10 to 65℃(No freezing) |
| Relative Humidity | 35~85%RH(No condensation) |
| Vibration Resistance | 10 to 55Hz Double amplitude 1.5mm, 2 hours in each XYZ axis |
| Impact Resistant | 100m/s 216ms pulse, 1000 times each or X,Y and Z axis |
| Main Material | Aluminum, Industrial Plastics |
| Cable Length | 2m(standard), PT1000 sensor standard cable length is 9m |
