Small Pipe Ultrasonic Flow Meter: Complete Guide for DN10-DN40 Applications

Struggling to find accurate flow measurement solutions for small diameter pipes? You’re not alone—87% of engineers report challenges when measuring flow in pipes below DN50.

Quick Answer: Small pipe ultrasonic flow meters (DN10-DN40) use transit-time technology with specialized compact transducers to measure liquid flow rates from 1-400 LPM without cutting pipes. Modern clamp-on designs like the SR7 series achieve <2% FS accuracy with 0.5-second response times, making them ideal for chemical dosing, pharmaceutical processes, and HVAC applications.

For a broader understanding of ultrasonic flow measurement technology, see our Complete Guide to Ultrasonic Flow Meters.


What Is a Small Pipe Ultrasonic Flow Meter?

A small pipe ultrasonic flow meter is a specialized instrument designed for accurate flow measurement in pipes with diameters from DN10 (⅜") to DN40 (1½"). Unlike standard ultrasonic meters designed for larger pipes, these devices feature compact transducers, optimized signal processing, and higher frequency operation to overcome the unique challenges of small diameter measurement.

Why Small Pipes Are Challenging

In our field experience installing hundreds of flow meters, we’ve identified three core challenges unique to small pipe applications:

ChallengeCauseImpact on Measurement
Limited Acoustic PathShorter signal travel distanceReduced signal-to-noise ratio
Sensitive Flow ProfileHigher surface-to-volume ratioGreater wall effects on flow
Mounting ConstraintsLimited physical spaceAlignment and coupling difficulties
Reynolds Number EffectsLower flow velocities typicalLaminar/transition flow complications

Key Insight from the Field: During a recent pharmaceutical plant installation, we discovered that conventional ultrasonic meters designed for DN50+ pipes showed 8-12% measurement errors when adapted for DN25 applications. Purpose-built small pipe meters reduced this error to under 2%.


How Does Transit-Time Technology Work in Small Pipes?

Small pipe ultrasonic flow meters primarily use transit-time measurement, which calculates flow velocity by measuring the time difference between ultrasonic signals traveling upstream and downstream. This principle is based on the Doppler effect and acoustic physics well-documented in flow metering standards such as ISO 12242:2012 for ultrasonic flow measurement.

The Transit-Time Principle

The fundamental formula for flow calculation:

Flow Velocity (V) = (L × ΔT) / (2 × T₁ × T₂ × cos θ)

Where:

  • L = Acoustic path length
  • ΔT = Time difference (downstream vs. upstream)
  • T₁, T₂ = Transit times
  • θ = Beam angle

In small pipes, this presents unique considerations:

  1. Higher Transducer Frequencies (1-5 MHz) – Required for adequate signal resolution in confined spaces
  2. Optimized Beam Angles (30°-55°) – Compensates for short acoustic paths
  3. Advanced Signal Processing – Filters noise and enhances weak signals

The speed of sound in water varies with temperature (approximately 1,497 m/s at 25°C), which is why temperature compensation is critical for accurate measurements. Reference values can be found at Engineering ToolBox – Speed of Sound in Water.

Small Pipe vs. Large Pipe Measurement Comparison

ParameterLarge Pipe (>DN100)Small Pipe (DN10-DN40)
Transducer Frequency0.5-1 MHz1-5 MHz
Signal Path TypeMulti-path possibleSingle-path optimized
Minimum Velocity0.03 m/s0.15 m/s
Typical Accuracy±0.5% of reading±2% of full scale
Installation SensitivityModerateHigh

For more details on transit-time technology, explore How Does a Transit-Time Ultrasonic Flow Meter Work?


Types of Small Pipe Ultrasonic Flow Meters

1. Clamp-On (External) Type

Best For: Non-invasive installation, retrofit applications, corrosive media

Clamp-on transducers mount externally on the pipe surface, making them ideal when:

  • Process cannot be interrupted
  • Media is corrosive or pure (no contamination risk)
  • Temporary or portable measurement is needed

Advantages:

  • Zero pressure drop
  • No pipe cutting required
  • Suitable for hazardous media
  • Easy relocation

Limitations:

  • Requires good pipe surface condition
  • Wall thickness limitations
  • Slightly lower accuracy than inline types

Learn more about clamp-on applications: Can Clamp-On Ultrasonic Flow Meters Work Effectively on Small Pipes?

2. Inline (Wetted) Type

Best For: Maximum accuracy, permanent installations, custody transfer

Inline meters place transducers in direct contact with the fluid through spools or insertion fittings.

Advantages:

  • Higher accuracy (±0.5%)
  • No wall thickness dependency
  • Better signal strength

Limitations:

  • Requires pipe modification
  • Process interruption for installation
  • Pressure drop considerations

3. Integrated Clamp-On (All-in-One) Design

Modern solutions like the SR7 series integrate the transducer and electronics into a single compact unit:

FeatureTraditionalSR7 Integrated
ComponentsSeparate transducer + transmitterSingle unit
Installation Time30-60 minutes3-5 minutes
Setup Steps10+ parameters2 parameters (OD + Wall Thickness)
Cable ManagementComplexMinimal

Ultrasonic Flow Meter


SR7 Small Pipe Ultrasonic Flow Meter: Technical Specifications

Based on our SR7 product line specifically designed for small pipes, here are the detailed specifications:

Performance Specifications

ParameterSpecificationNotes
Pipe Size RangeDN10, DN15, DN20, DN25, DN32, DN40OD range: 12mm – 52mm
Accuracy<2% FS (Standard) / <3% FS (Corrosion Resistant)Under normal conditions
Response Time0.5 – 3 secondsConfigurable via damping
Flow Velocity Range0.15 – 10 m/sLow-cut adjustable
Repeatability0.2% of readingAt stable flow conditions

Flow Range by Pipe Size

Pipe Size (DN)External Diameter RangeFlow Range (LPM)
DN10Ø12mm – Ø18mm1 – 30
DN15Ø18mm – Ø23mm2 – 60
DN20Ø23mm – Ø28mm3 – 100
DN25Ø28mm – Ø33mm5 – 150
DN32Ø33mm – Ø44mm8 – 260
DN40Ø44mm – Ø52mm12 – 400

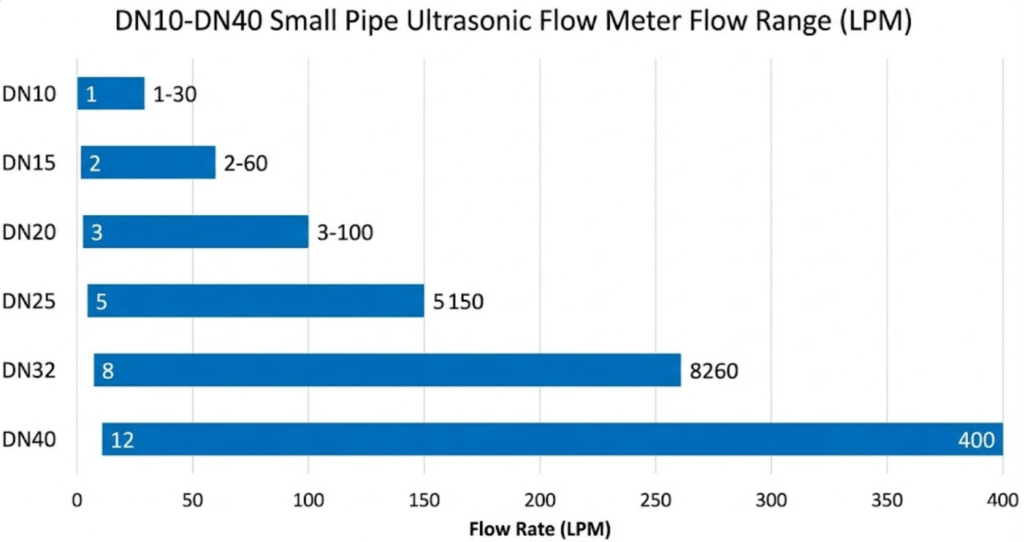

DN10-DN40 Small Pipe Ultrasonic Flow Meter Flow Range (LPM)

Environmental & Electrical Specifications

ParameterStandard VersionMedium-Temp Version
Media Temperature-10°C to 65°C-10°C to 105°C
Ambient Temperature-10°C to 60°C-10°C to 60°C
Power Supply20-28V DC20-28V DC
Power Consumption1W1W
Protection RatingIP54IP54
Display1.5" OLED1.5" OLED

Compatible Pipe Materials

  • Metal Pipes: Stainless steel, Carbon steel, Copper
  • Plastic Pipes: PVC, PP, PE, PVDF (rigid pipes only)

Note: For other materials, contact our technical team to verify acoustic compatibility.


Installation Guide: Getting It Right the First Time

Straight Run Requirements

Proper installation location is critical for accuracy. Based on our extensive field experience:

Upstream ConditionUpstream RequirementDownstream Requirement
Standard installation>10D>5D
After elbow>10D>5D
After valve>30D>10D
After pipe reduction>10D>5D
After pipe expansion>30D>5D
After pump>20D>10D

D = Pipe internal diameter

For complete installation guidelines, see Pipe Requirements for Ultrasonic Flow Meter Installation.

Mounting Position Best Practices

Recommended Positions:

  • 3 o’clock or 9 o’clock on horizontal pipes (transducers on sides)
  • ✅ Vertical pipes with upward flow
  • ✅ Ascending horizontal sections

Avoid:

  • ❌ Top of horizontal pipe (air bubble accumulation)
  • ❌ Bottom of horizontal pipe (sediment accumulation)
  • ❌ Vertical pipes with downward flow (air entrainment risk)

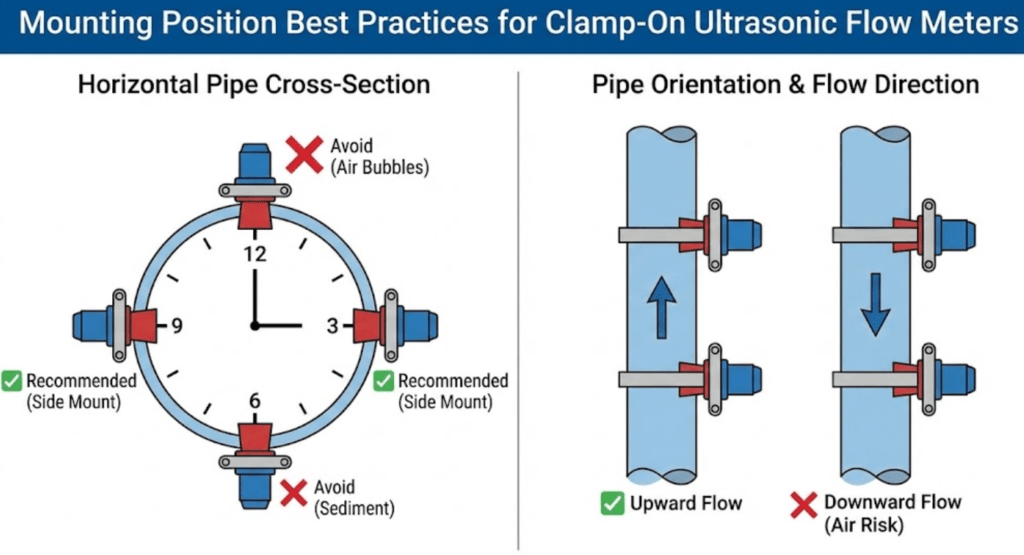

Mounting Position Best Practices for Clamp-On Ultrasonic Flow Meters

The Two-Step Setup Process (SR7)

One of the most significant advantages of integrated designs like the SR7 is the simplified setup:

Step 1: Enter Outer Diameter (OD)
Configure the exact external diameter measurement of your pipe within the supported range.

Step 2: Enter Wall Thickness (THK)
Input the pipe wall thickness (supported: 1.0mm – 5.5mm in 0.5mm increments).

Important: The calculated inner diameter must not fall below the DN specification minimum. For example, DN10 requires a calculated ID ≥ 10mm.

Lessons from the Field: Common Installation Mistakes

Case Study 1: Pharmaceutical Water System (DN25)

Problem: Initial readings showed ±15% deviation from reference meter.

Root Cause: Meter installed only 3D downstream of a 90° elbow (should be >10D).

Solution: Relocated meter to achieve 12D straight run upstream. Deviation reduced to <1.5%.

Case Study 2: Chemical Dosing Line (DN15)

Problem: Intermittent "No Signal" errors.

Root Cause: Air bubbles trapped at transducer location (top-mounted on horizontal pipe).

Solution: Rotated meter to 3 o’clock position. Continuous stable readings achieved.


Wiring and Output Configuration

M12-A Connector Pinout

Based on the SR7 product manual, the wiring definition is:

Wire ColorFunctionNotes
Brown DC+ (Power in +)24VDC power positive
Black 4-20mA OUT+Flow 4-20mA output positive
Blue 0V / DC- / 4-20mA OUT-Power negative / 4-20mA common
White RS485 AModbus communication A
Grey RS485 BModbus communication B

Available Output Options

Output TypeApplicationConfiguration
4-20mAPLC/DCS integrationProportional to flow rate
RS485 ModbusSCADA/BMS systemsRTU protocol
OCT (Pulse)Totalizer integration0-5KHz frequency output
RelayAlarm/batch controlHigh/low limit triggers

For detailed Modbus register mapping, refer to our SR7 Technical Manual.


Applications: Where Small Pipe Flow Meters Excel

1. Chemical Injection & Dosing Systems

Small pipe ultrasonic meters are ideal for monitoring precise chemical dosing:

  • Corrosion inhibitor injection
  • pH adjustment chemicals
  • Coagulant/flocculant dosing
  • Biocide treatment systems

Key Advantage: Non-invasive measurement prevents contamination and eliminates pressure drop in precision dosing circuits.

2. Pharmaceutical & Biotech

Clean-in-place (CIP) systems and process water monitoring:

  • DI water distribution
  • Buffer solution preparation
  • Purified water loops
  • Small-scale batch processing

For pharmaceutical water applications, see What Makes Ultrasonic Flow Meters Ideal for Water Measurement?

3. HVAC & Building Systems

  • Chilled water submetering
  • Fan coil unit monitoring
  • Heat transfer fluid measurement
  • Cooling system optimization

Related reading: How Do Clamp-On Ultrasonic Flow Meters Measure Energy in Different Applications?

4. Laboratory & Research

  • Pilot plant studies
  • Flow characterization
  • Equipment testing
  • Calibration verification

5. Food & Beverage

  • Flavor/additive injection
  • CIP monitoring
  • Small-batch ingredients
  • Sanitary processing lines

See also: Brewing & Dairy: How Food-Grade EMFs Prevent Contamination

6. Oil & Gas Industry

Small pipe ultrasonic meters serve critical roles in oil and gas applications:

  • Chemical injection systems – Monitoring corrosion inhibitors, scale inhibitors, and demulsifiers
  • Hydraulic control lines – Subsea and topside umbilical monitoring
  • Sampling systems – Process sample line flow verification
  • Pilot plant testing – Refinery process optimization studies
  • Fuel oil systems – Burner feed monitoring

Field Note: In offshore platform chemical injection applications, we’ve seen 30-40% improvement in chemical efficiency by implementing accurate small pipe flow measurement. Previously, operators were overdosing due to lack of real-time monitoring.

For more oil and gas applications, see What Flow Meter Types Are Best Suited for Oil and Gas Industry Applications?


Troubleshooting Common Issues

Problem-Cause-Solution Matrix

ProblemPossible CauseSolution
No signal (Q=0)Air in pipeVerify full pipe condition
Poor couplingApply couplant gel, check surface
Incorrect parametersVerify OD and wall thickness settings
Unstable readingsTurbulent flowIncrease damping setting
Pump pulsationInstall pulsation dampener upstream
Air bubblesRelocate to 3 o’clock position
Consistently high/low readingsIncorrect pipe sizeRe-measure OD and wall thickness
Scale/deposit on pipeClean pipe surface
Wrong flow directionCheck DIR parameter setting
Signal strength lowThick pipe wallIncrease AMP (gain) setting
Corroded pipeConsider inline meter option
Low velocityVerify above 0.15 m/s minimum

Zero Point Calibration

Critical: Zero calibration must be performed with the pipe completely full and zero flow (static) conditions:

  1. Close upstream and downstream valves
  2. Wait 5+ minutes for fluid to settle
  3. Access Zero menu (Zero setting)
  4. Confirm zero point capture

This removes any static offset and dramatically improves low-flow accuracy.

For additional troubleshooting guidance: Why Is My Ultrasonic Flow Meter Not Working? Expert Solutions


Selection Guide: Choosing the Right Small Pipe Flow Meter

Decision Framework

Step 1: Determine Pipe Size
Measure actual external diameter and wall thickness. Select the appropriate DN model.

Step 2: Evaluate Media Properties

  • Temperature range (Standard: -10°C to 65°C / Medium-temp: -10°C to 105°C)
  • Conductivity (ultrasonic works with non-conductive fluids)
  • Particle content (transit-time requires <50 ppm solids)

Step 3: Consider Installation Environment

  • Corrosive atmosphere? (Select corrosion-resistant version with plastic hardware)
  • Vibration present? (May require damping adjustments)
  • Outdoor exposure? (Ensure IP rating adequate)

Step 4: Define Output Requirements

  • Analog integration → Select 4-20mA
  • Digital communication → Select RS485 Modbus
  • Pulse totalization → Select OCT output
  • Alarm functions → Select Relay option

SR7 Model Selection Code

Format: SR7-[Pipe]-[Temp]-[Outputs]-[Options]

CodeMeaning
Pipe Size: 10A, 15A, 20A, 25A, 32A, 40ADN10-DN40 options
Temperature: TT02S (Standard), TT03S (Medium)-10°C to 65°C / 105°C
Outputs: A (4-20mA), M (Modbus), O (OCT), R (Relay)Select 2 of 4
Options: T (Temperature display)Optional feature

Example: SR7-20A-TT02S-AM = DN20, Standard temp, 4-20mA + Modbus outputs


Small Pipe Flow Meters vs. Alternative Technologies

Technology Comparison for DN10-DN40 Applications

FeatureUltrasonic (Transit-Time)ElectromagneticTurbineCoriolis
Non-conductive fluids✅ Yes❌ No✅ Yes✅ Yes
No pressure drop✅ Yes (clamp-on)⚠️ Minimal❌ No⚠️ Minimal
No moving parts✅ Yes✅ Yes❌ No✅ Yes
Small pipe accuracyGood (±2% FS)Good (±0.5%)PoorExcellent (±0.1%)
Installation ease⭐⭐⭐⭐⭐⭐⭐⭐⭐⭐⭐⭐
Cost$$$$$$$$$$

For a detailed comparison: EMF vs. Ultrasonic vs. Coriolis Flowmeters: Which Wins for Your Industry?


FAQ: Small Pipe Ultrasonic Flow Meters

What is the minimum pipe size for ultrasonic flow meters?

Modern small pipe ultrasonic meters can measure pipes as small as DN10 (⅜" / OD 12mm). Some specialized laboratory units work down to DN6 or DN8, though these typically require custom calibration. The SR7 series supports DN10-DN40 as standard.

Can ultrasonic flow meters measure non-conductive liquids?

Yes. This is a key advantage over electromagnetic flow meters. Ultrasonic transit-time technology works with any homogeneous liquid regardless of conductivity, including:

  • Deionized (DI) water
  • Oils and hydrocarbons
  • Alcohols and solvents
  • Chemical solutions

What is the accuracy of small pipe ultrasonic meters?

Typical accuracy for small pipe clamp-on ultrasonic meters is ±2% of full scale under optimal conditions. Factors affecting accuracy include:

  • Installation quality (straight run, mounting position)
  • Flow velocity (best above 0.3 m/s)
  • Pipe condition (scale, corrosion)
  • Proper parameter setup

For higher accuracy requirements (±0.5%), consider inline wetted meters.

Do small pipe ultrasonic meters work with plastic pipes?

Yes, with limitations. Compatible plastic materials include:

  • PVC (Polyvinyl Chloride)
  • PP (Polypropylene)
  • PE (Polyethylene)
  • PVDF (Polyvinylidene Fluoride)

Requirements:

  • Pipe must be rigid (not flexible tubing)
  • Wall thickness within supported range (typically 1.0-5.5mm)
  • Homogeneous material (not reinforced/composite)

How often do small pipe ultrasonic meters need calibration?

For most industrial applications, annual calibration verification is recommended. However:

  • Critical processes: Semi-annual verification
  • Custody transfer: Per regulatory requirements (often annual with documentation)
  • Stable, non-critical monitoring: Every 2-3 years may be acceptable

The non-invasive nature of clamp-on meters means they experience minimal drift compared to wetted sensors.

What maintenance is required?

Small pipe clamp-on ultrasonic meters require minimal maintenance:

  • Periodic visual inspection of transducer mounting
  • Check cable connections
  • Verify display readings against process expectations
  • Clean pipe surface if access allows (during shutdowns)
  • No moving parts to replace

For calibration verification procedures, reference standards such as those published by NIST (National Institute of Standards and Technology) provide guidance on measurement traceability.

See also: What’s the Best Way to Maintain Your Ultrasonic Flow Meter?


Conclusion: Key Takeaways

  1. Purpose-built small pipe meters outperform adapted large-pipe units — specialized transducers and signal processing are essential for DN10-DN40 accuracy.

  2. Clamp-on technology offers the fastest ROI — zero downtime installation, no pressure drop, and no contamination risk make it ideal for most applications.

  3. Installation quality determines measurement quality — respect straight run requirements and mounting position guidelines for best results.

  4. The SR7 integrated design simplifies deployment — only two setup parameters (OD and wall thickness) are needed versus 10+ for conventional systems.

  5. Consider your complete application requirements — temperature range, output needs, and environmental conditions should guide model selection.


Need Expert Assistance?

Our flow measurement specialists have helped hundreds of facilities optimize small pipe flow measurement. Whether you’re designing a new system or troubleshooting an existing installation, we’re here to help.

Request a Quote or Technical Consultation →

Explore Our Small Pipe Solutions:


Related Articles


Last Updated: January 2026 | Shanghai Soaring Instrument Technology Co., Ltd.

Contents Hide

Quote now

We will contact you within 1 working day, please pay attention to the email id
[email protected]
