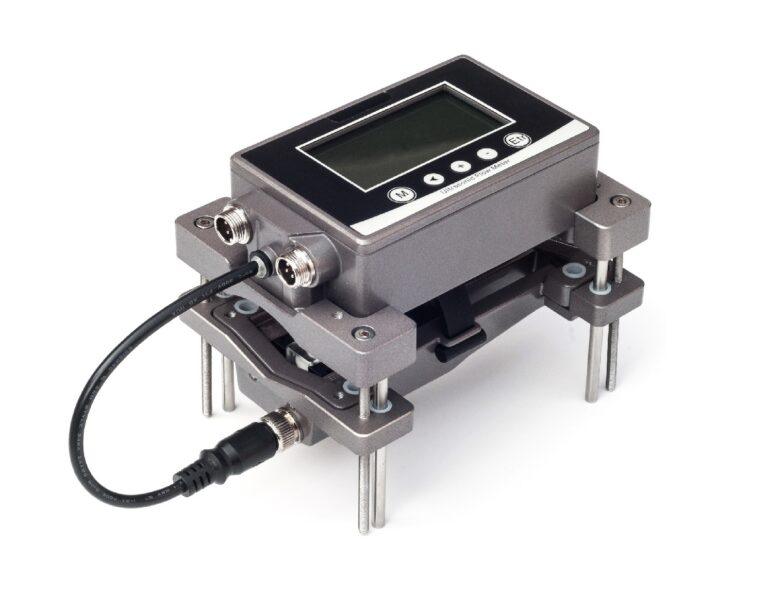

ultrasonic flow meter for small pipe

Efficient and accurate flow measurement for DN15-DN65

Designed for precision and ease-of-use in small pipes

Easily and friendly for installation and operation. It only takes a few minutes, from the start of installation to using the flow meter.
Adopts a new external clamp design, which could get the flow rate without touch the measurement medium. Compared with other traditional flow meter, this could avoide pressure loss or media contamination problems.
As the advantage of a clamp on flow meter, no need to cut off the pipe or long time stop the equipment, save the cost of time and labor costs.
A variety of modes are available for setting and flexibility. One set is universal for all pipe size in measuring range, and suitable for many kinds of metal and resin pipes.
256*128 LCD display and display a variety of information.
It is optional to become an ultrasonic cooling(heat) meter/btu meter/energy meter to realize the monitoring and measurement of energy.

HTML Table

Performance	Technical Specification
Pipe Material	Metal/PVC, PP or PVDF rigid plastic pipe
Liquid Type	Water/other liquid(Singleliquid medium without solid particle or impurities)
Temperature Range	Standard:-10~65℃; High temp: -10~115℃
Low Velocity Cut Off Value (Default By Factory)	0.1m/s
Display	256*128 LCD
Response Time	0.5~60s
Accuracy	+/-2%(+/-1% after calibration)
Data Storage Period	300ms
Memory For Data Backup	EEPROM(Data storage: over 10 years,data read/write frequency: over1 million times)
Power And I/O Connection	M12 type aviation plug
Output	4-20mA
Communication	Modbus RS485
(Options for Output)	OCT(pulse output)/One relay alarm(please contact the factory)
Power Supply	10-24V VDC
Electric Power	＜3W
Protective Circuit	Power reverse connection protection, Power surge protection Output short circuit protection, Output surge protection
Enclosure Protection Class	IP65
Environment Temperature	10 to 65℃(No freezing)
Relative Humidity	35~85%RH(No condensation)
Vibration Resistance	10 to 55Hz Double amplitude 1.5mm, 2 hours in each XYZ axis
Impact Resistant	100m/s 216ms pulse, 1000 times each or X,Y and Z axis
Main Material	Aluminum, Industrial Plastics
Cable Length	2m(standard), PT1000 sensor standard cable length is 9m
