clamp-on ultrasonic flow meter

high accuracy non-contact flow measurement

±1% Accuracy | Zero Maintenance | Long-term Stability

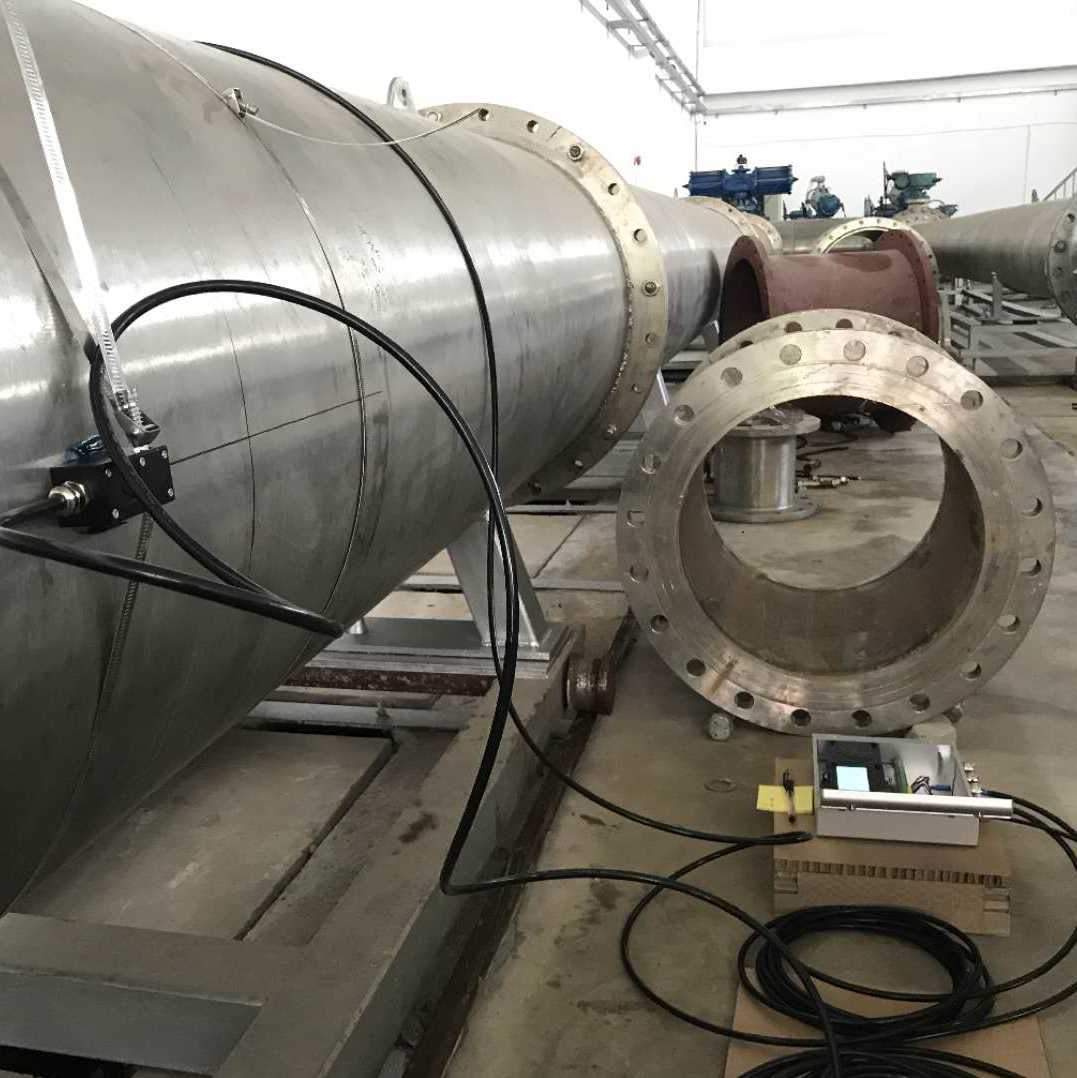

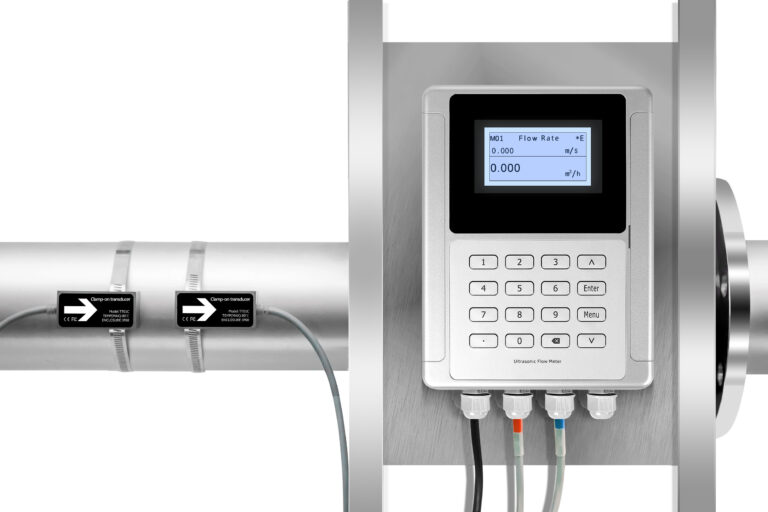

Flow meter is a high-end, wall-mounted ultrasonic flow meter adopting TGA transit-time difference technology. It was designed and implemented by using Intel’s FPGA chip. Both clamp-on and insertion transducers are available.
Innovative and patented design of covers hides all screws after installation. 4 lines LCD screen presents a clearer and broader vision. Membrance keyboard offers longer service life and more comfortable hand feeling.
Flow meter has superiority of high measuring rate of more than 300 times a second, high accuracy of better than 1.0% and high tolereance rate to continuous bubbles or impurities up to 5 seconds.

HTML Table

Performance
Flow Range	±0.09ft/s~±39ft/s(±0.03m/s~±12m/s)
Accuracy	±1% of measured value
Repeatability	0.2% of measured value
Linearity	±1%
Pipe Size	DN25-DN1200, DN15-DN40(A pair of sensors)
Function
Output	Analog output: 4-20mA, Max. load 750Ω Pulse output: 0-10KHz
Communication	RS232/RS485 Modbus(M-Bus or Hart is optional)
Power Supply	DC10-36V/ AC90-245V
Display	240*128 backlit LCD
Temperature	Transmitter: -20℃~60℃ Transducer:-40℃~80℃(TT01,TT02) Transducer:-40℃~130℃(TT03,TT05) Transducer:-40℃~180℃(TT02H) Transducer:0℃~65℃(TT02S) Transducer:0℃~135℃(TT03S)
Humidity	Up to 99%RH, non-condensing
Physical
Transmitter	PC+ABS, IP65
Transducer	Enccapulated design IP68 Double-shielded transducer cable Standard/Max. cable length: 30ft/1000ft(9m/300m)
